Gigglepin Solid Narrow Diameter Winch Drum
Gigglepin Solid Narrow Diameter Winch Drum
Gigglepin Solid Narrow Diameter Winch Drum


Regular price
Sale price

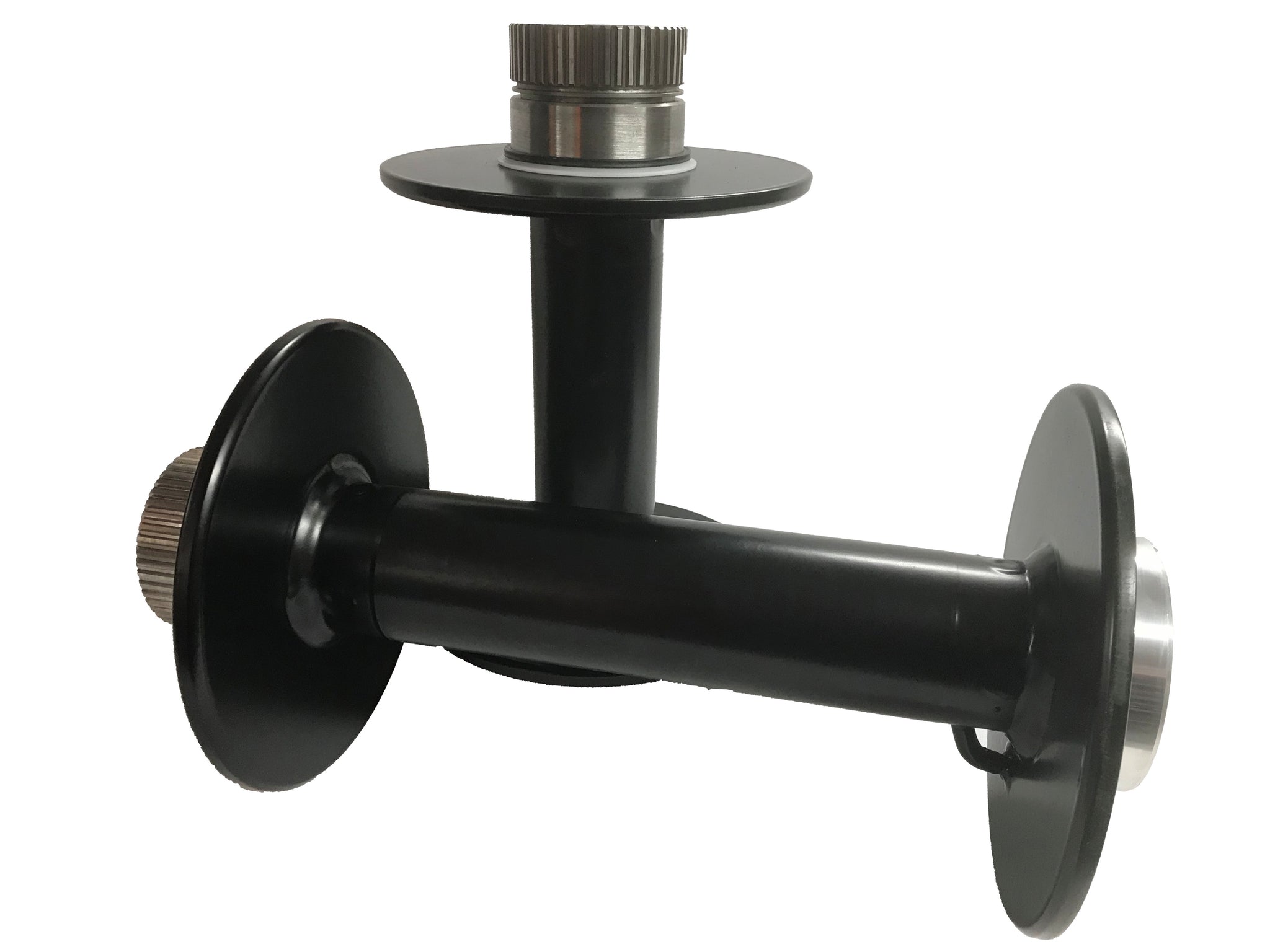

The Gigglepin narrow diameter solid drum features a narrow diameter (63.5mm) and is available in two lengths Short (same as 8274/8074) and Standard (+76mm length).

These solid drums are a great upgrade for those that don't require a pneumatic freespool and are fitted with large roller bearing, 8mm drum plates, rope retainer loop and housing seal.

A direct replacement for a standard Warn 8274/8074 drum, this is the same drum used in our GP25 SingleMotor Ultimate Adventure Winch.

Available in two lengths -
Short - (same as Warn 8274)
Standard - (76mm longer than the Standard 8274 drum),

Our drums have the following features:

  • Sealed drum bearing on the free end with aluminium bearing support,
  • 8mm thick Drum end plates to reduce flex,
  • Drum end plates spaced away from lower housing so if either do flex the drum continues to operate,
  • Stainless steel bearing supports to stop corrosion,
  • Reduced diameter drum available in two lengths, short and long (+76mm),

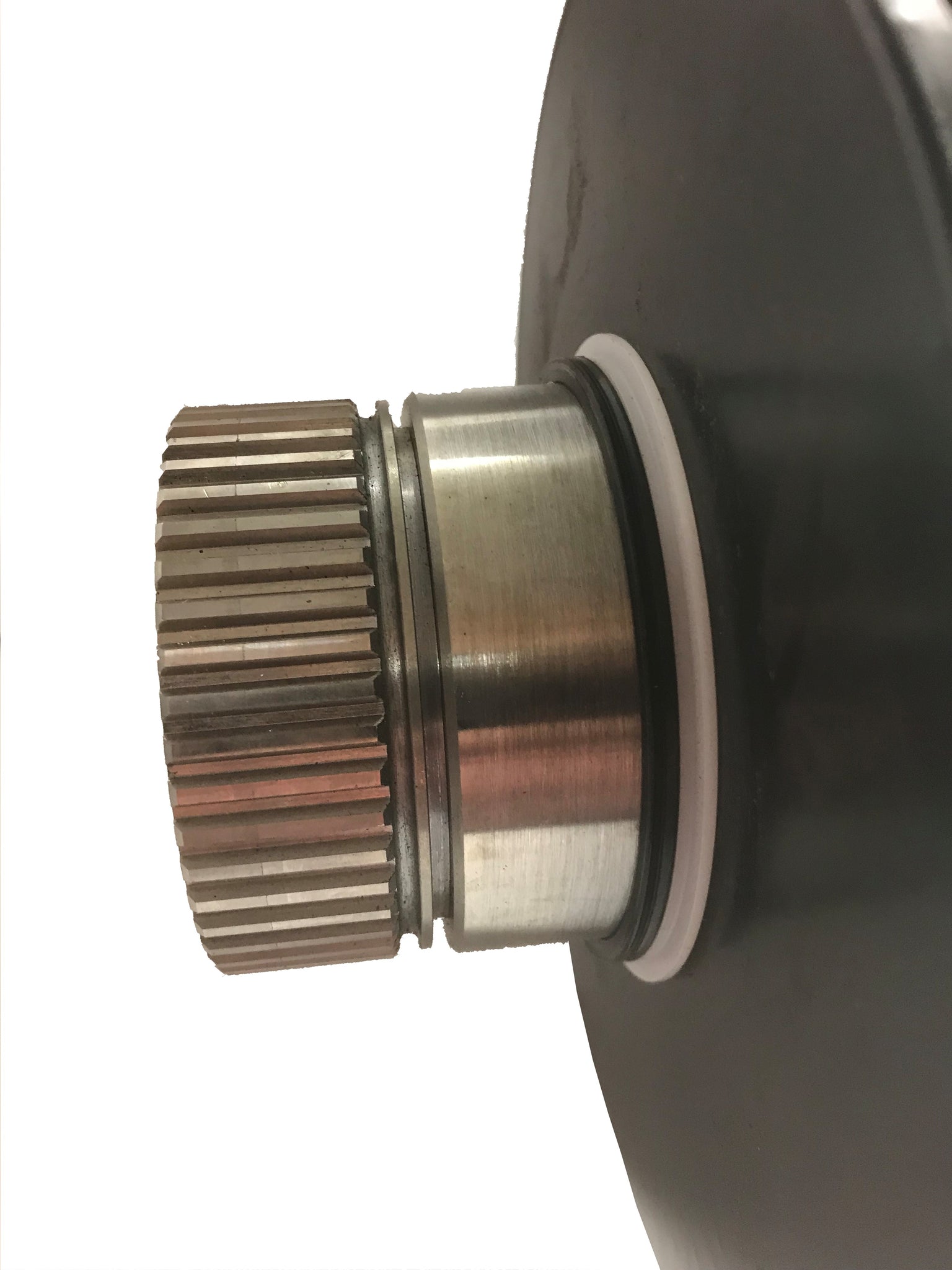

  • Large free end sealed bearing & adaptor/retention ring for smooth operation,
  • PTFE support washer for perfect sealing and smoother operation,
  • Gigglepin rope retention system,
  • Supplied with Nitrile drum seal,
  • Tough Black Nylon Coating.
Product Brand: Gigglepin
Product Code: G18005 / G18006
