Gigglepin Super Housing for Warn 8274
Gigglepin Super Housing for Warn 8274
Gigglepin Super Housing for Warn 8274
Gigglepin Super Housing for Warn 8274

Gigglepin Super Housing for Warn 8274

Regular price
Sale price

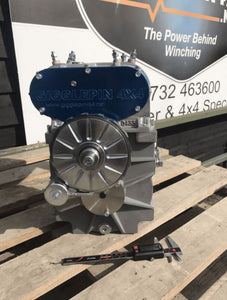

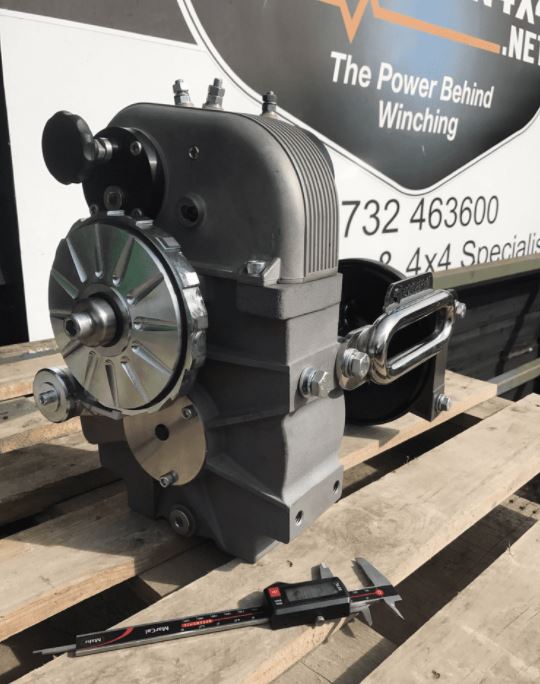

The Gigglepin Super Housing is designed to work with the standard Warn 8274/8074 or Gigglepin Freespool/Solid Drums. You can use standard Warn or Gigglepin internal components

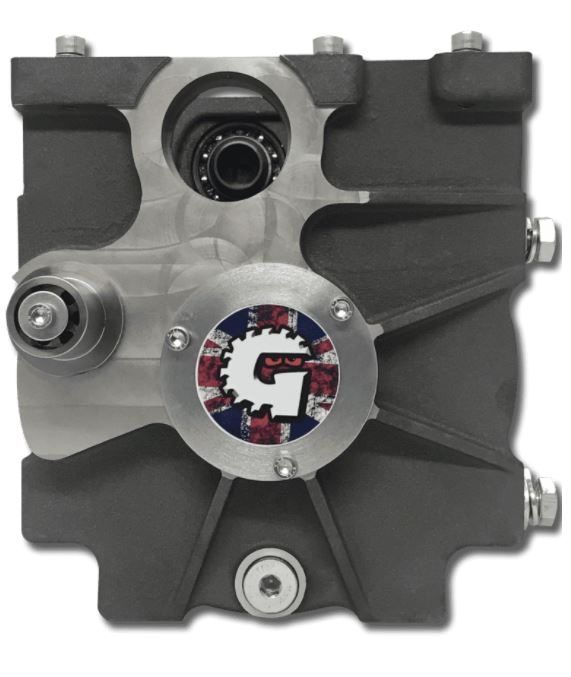

Featuring a large bearing and oil seal to give perfect performance. The SuperHousing also features an oil drain plug, replaceable brake pawl mount, brake shaft roller bearing and 12 mounting points. This housing can be used with all Gigglepin Top Housings and Standard Warn 8274/8074 Top Housings.

Supplied with mounting bolts and Top Housing bolts.

Manufactured from heat treated cast aluminium it has the following features -

  • Compatible with Warn 8274 Top Housing or ANY GP twin motor top housing,

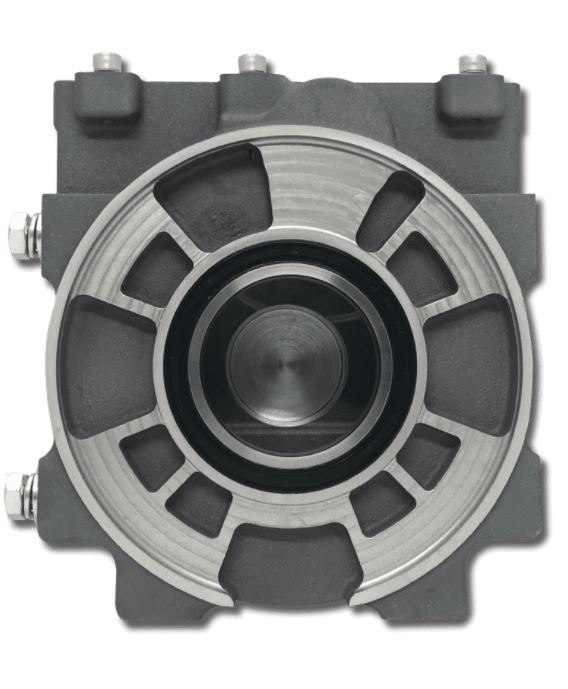

  • Large drum roller bearing and adaptor to fit any 8274 drum or 8274 Freespool drum,
  • Twin lipped drum seal to stop dirt increase and stop oil leaks,
  • 12 symmetrical M12 mounting points,
  • Removable stainless steel brake pawl mount for longevity and serviceability,
  • Mainshaft roller bearing and adaptor supplied as standard,
  • Oil drain bung with iridium magnet,
  • Increased oiling to brakeshaft and 7548 gear interface,
  • Allows rear brace bars to be fitted when used in conjunction with Gigglepin drum end plate,
  • Bronze bush depth stop and retainer screw as standard,
  • Lower casing inspection port,
  • Thicker casing for increased strength.

 Compatible with Warn 8274 and ALL Gigglepin Twin-motor top housings

 Designed to work with Gigglepin heavy duty SuperShaft, no D shim required

 Supplied with Top housing mounting bolts

Recommended to be used with GP Drum Support Plate and/or brace bars.

*Please note that this housing is designed to be used with the Gigglepin Large Cam Gear (G60121). The Warn large cam gear (Part number: 7562) cannot be used with this housing.

Product Brand: Gigglepin
Product Code: G17008
