Gigglepin Brake Assembly Upgrade for Warn 8274 winches – Gigglepin Australia
Brake Assembly G7634
Gigglepin Brake Assembly Upgrade
Gigglepin Brake Assembly Upgrade

Gigglepin Brake Assembly Upgrade

Regular price
Sale price

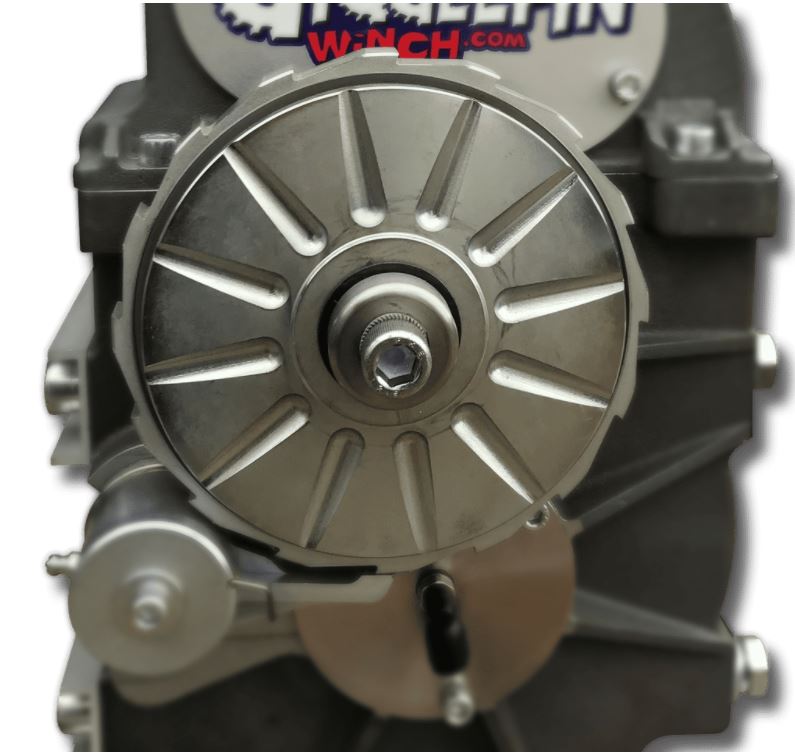

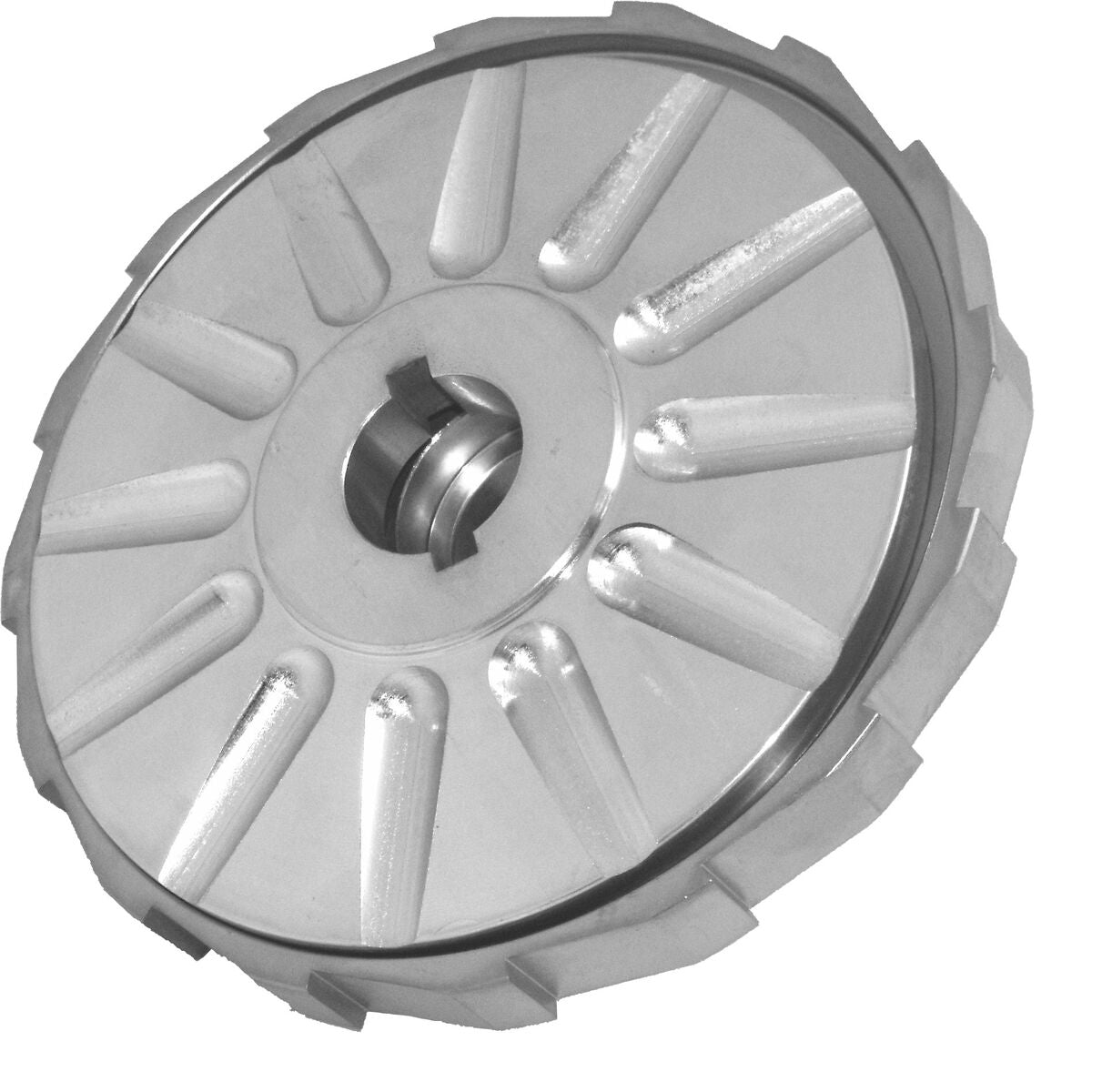

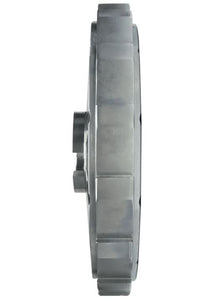

The Gigglepin Billet Brake Assembly is fully machined from billet steel, hardened and zinc passivated. It is available as an upgrade replacement for a Warn 8274/8074.

Due to the increased material strength & manufacturing process the brake assembly will last much longer than the standard Warn items (Pt no’s: 8703, 7601, 7600).

We have designed the ratchet reducing the number of teeth to 15 rather than 18, this reduces the risk of the pawl semi engaging which could cause considerable damage.

The inner & outer discs provide more positive engagement with the woodruff keys & large cam gear on the winches main shaft.

As fitted to all Gigglepin Winches.
Suitable for Warn 8274/8074 and GP82/83 winches.

Benefits of the GP brake assembly are -
• Reduced teeth on brake ratchet,
• Improved brake performance,
• Superior material quality,
• Enhanced reliability,
• Aesthetically pleasing.

Product Brand: Gigglepin
Product Code: G7634
